| Authentication | TUV |
| Meet the standard | EN 62196-1:2014 |
| Mechanical life | No load plug and unplug >10000 |
| Inserting and pulling force during coupling | >40N<80N |
| Operating ambient temperature | -30℃~+50℃ |
| Housing material | Thermoplastic, Flammability Rating UL94V-0 |
| Protection grade | IP55(Working condition) |
| Working current | 25A 60A |
| Operating voltage | 120V |
| Insulation resistance | >5MΩ(DC500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V/AC |

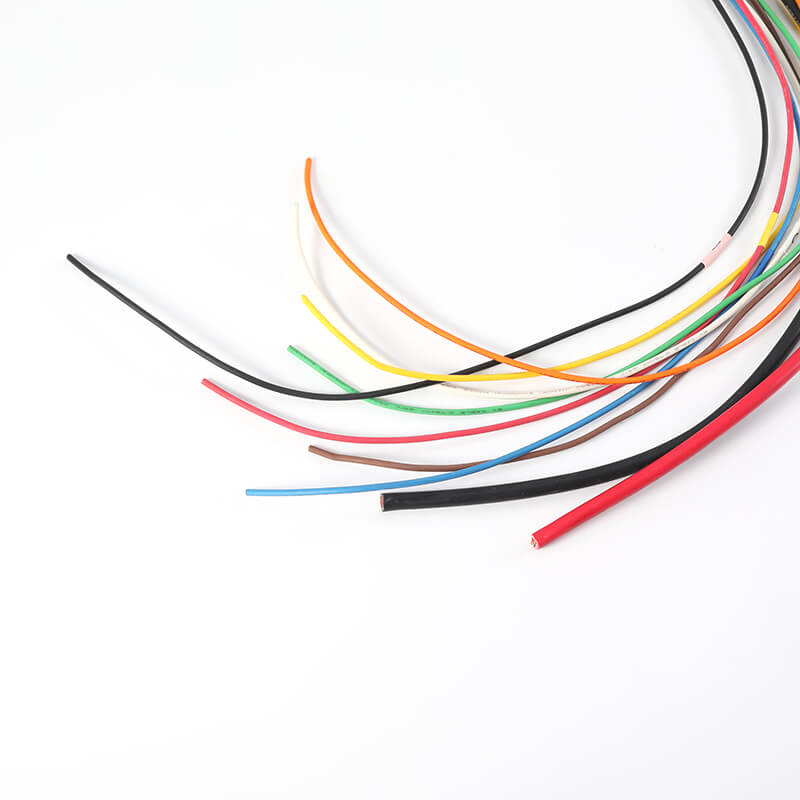

| Cable specification | 2x10mm²+12x0.75mm² |
